Underlay Linear Wetroom Kit for Tiled Floors

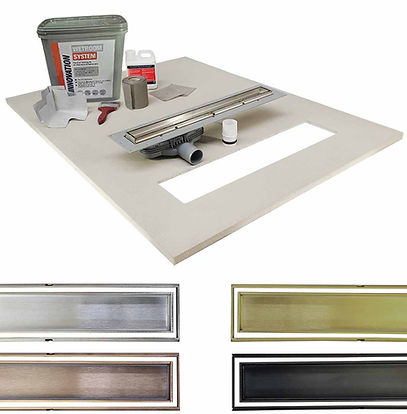

A complete linear wetroom system for tiled floors, combining the Underlay Linear floor former, Purus Living linear drain and paint-on tanking system in one kit.

Manufactured from high-strength XPS with a tough, impact-resistant surface, Underlay Linear provides a lightweight solution for timber or solid floors, with a choice of drain grids and waste outlets to suit different installation requirements.

All components are also available separately.

From 22m Thick | 20 x 20mm Minimum Tile Size | Up to 72 L/m Drain | Up to 10m² Tanking

Underlay Linear Key Features

High-strength XPS construction
Tough, impact-resistant surface
Suitable for timber and solid floors with full support underneath
High compressive strength permits tiles from 20 x 20mm
Built-in falls towards the linear drain
Can be cut to size where required
Manufactured in the UK

What's Included in the Underlay Linear Kit?

Underlay Linear wetroom former
Purus Living linear drain
Choice of drain grid
Choice of waste outlet
9kg Innovations paint-on tanking system
Installation instructions

Sizes

850 x 850 x 22mm

ULK850

1000 x 1000 x 22mm

ULK100

1200 x 900 x 22mm

ULK129

1500 x 900 x 22mm

ULK159

1600 x 1000 x 22mm - Long Side Drain

ULK161

Underlay Linear 1600 x 1000mm long side drain

1600 x 1000 x 22mm - Short Side Drain

ULK162

Underlay Linear 1600 x 1000mm Short side end drain

1800 x 900 x 32mm

ULK189

2000 x 1000 x 32mm

ULK201

2300 x 1200 x 30mm

ULK231

Underlay Linear floor former 2300 x 1200mm

Why Choose an Underlay Linear Wetroom Former?

Underlay Linear combines a lightweight XPS wetroom former with the clean appearance and high drainage capacity of a linear channel drain.

The former incorporates the required falls towards the drain and is easy to handle and cut on site.

Suitable for Timber & Solid Floors

Underlay Linear can be installed on timber or solid floor constructions. On timber floors, the former must be fully supported underneath in accordance with the installation instructions. For solid floors, the former can be recessed to help create a level-access tiled shower area.

Purus Living Linear Wetroom Drain

The Underlay Linear kit includes the Purus Living linear drain, providing a contemporary drainage solution with a choice of grid finishes and three waste outlet options to suit different installation depths and drainage requirements.

Drain Lengths: 600mm or 800mm

Maximum Flow Rate: 72 L/min

Connection: 40mm solvent weld

Trap: Spring-loaded NOOD no-odour trap

Waste outlets: Low, Side or End Parallel

Tile Insert Finishes

Brushed Brass

Code -BBTI

Black

Code - MBTI

Bronze

Code - BZTI

Purus Linear Drain Tile Insert Black Finish 52739MB

Purus Linear Drain Tile Insert Brushed Brass Finish 52739BR

Twist Grate

Stainless steel decorative linear grate providing a more visible contemporary drain finish.

Code -TSS

Purus Living Linear Stainless Steel Twist Drain 52742

Linear Drain Waste Outlet Options

Choose from three waste outlet configurations to suit the available installation depth and direction of the waste pipe.

Low 52mm Outlet

Flow Rate: 32 L/min

Supplied as Standard

Purus Living Linear low 52mm Nood Waste Outlet

Projects 74mm below the tray

Side 105mm Outlet

Flow Rate: Up to 72 L/min

Purus Living Linear Standard 105mm Nood Waste Outlet

Projects 131mm below the tray

End Parallel Outlet

Flow Rate: Up to 72 L/min

Purus Living Linear End Parallel 105mm Nood Waste Outlet

Projects 131mm below the tray

Linear Drain Technical Drawings

Tile Insert Technical Drawing

Twist Drain Technical Drawing

Complete Wetroom Tanking System Included

Every Underlay Linear tiled-floor kit includes our Innovations paint-on tanking system, providing a continuous waterproof membrane across the wetroom floor and surrounding wet area before tiling.

innovations 9kg paint-on wetroom tanking system

Included:

9kg tanking liquid
10m joint tape
2 internal corners
2 pipe collars
1 litre primer
Application brush

Up to 10m² Coverage | No Mixing Required | Flexible Membrane | Suitable with Underfloor Heating

Underlay Linear Installation Instructions

Always read the installation instructions before beginning work and check that the former, drain and floor construction are suitable for the intended installation.

Underlay Linear Installation Instructions

Need Help? Contact Technical Support

Underlay Linear Wetroom Kit FAQs

Can Underlay Linear be installed on timber floors?

Yes. Underlay Linear is suitable for timber floor installations, but the former must be fully supported underneath in accordance with the installation instructions.

Can Underlay Linear be installed on solid floors?

Yes. Underlay Linear can be installed into suitable solid floor constructions and recessed where required to create a level-access tiled shower area.

What is the minimum tile size?

The high-compressive-strength surface allows tiles and mosaics from 20 × 20mm to be installed using a suitable tile adhesive.

Which waste outlet should I choose?

This depends mainly on the available installation depth, waste pipe direction and required flow rate. The low 52mm outlet is ideal where depth is restricted, while the 105mm side and end outlets provide higher flow rates.

Can the Underlay Linear former be cut to size?

Yes. The former can be cut where required to suit the available space, taking care to maintain the necessary falls towards the linear drain.

Does Underlay Linear need tanking before tiling?

Yes. The wetroom must be correctly waterproofed before tiling. The kit includes our paint-on tanking system for waterproofing the former and surrounding wet area.
