Maxxus Wetroom Kit for Tiled Floors

A complete structural wetroom system for tiled floors, combining the Maxxus floor former, Purus Minimax drain and paint-on tanking system in one kit.

At only 22mm thick, the Maxxus former is self-supporting, can be installed over timber joists or into solid floors, and is available in a wide range of sizes to suit different wetroom layouts.

All components are also available separately.

22m Thick | 470kg Load Capacity | 47 L/m Drain | Up to 10m² Tanking

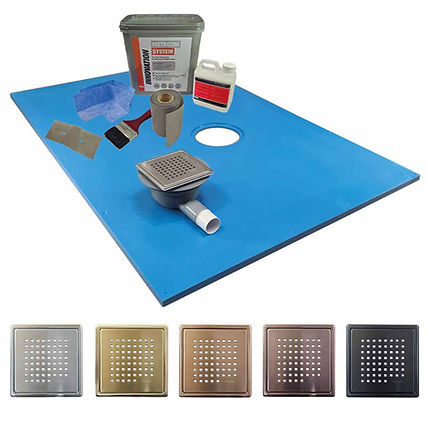

Mxxus wetroom Kit for tile floors with grids and tanking kit

Maxxus Key Features

Self supporting structural construction
Suitable for timber and concrete floors
Only 22mm thick
Accepts loads up to 470kg over 400mm joist centres
Solid construction with no holes or pockets
Built-in falls direct water towards the drain
Can be cut to size where required
Independently tested and certified
Manufactured from 50% recycled material
100% recyclable

What's Included in the Maxxus Kit?

Maxxus structural wetroom former
Purus Minimax 2-part drain
Choice of standard drain grid
Grid adapter (height adjustable)
Drain collar
9kg Innovations paint-on tanking system
Installation instructions

Sizes

900 x 900 x 22mm

ML934

900 x 900mm Maxxus structural wetroom floor former

1000 x 1000 x 22mm

ML930

1000 x 1000mm Maxxus structural wetroom floor former

1135 x 770 x 22mm

ML931

1135 x 770mm Maxxus structural wetroom floor former

1200 x 800 x 22mm

ML941

1200 x 800mm Maxxus structural wetroom floor former

1200 x 900 x 22mm

ML929

1200 x 900mm Maxxus structural wetroom floor former

1300 x 800 x 22mm

ML932

1300 x 800mm Maxxus structural wetroom floor former

1400 x 900 x 22mm

ML935

1400 x 900mm Maxxus structural wetroom floor former

1500 x 800 x 22mm

ML933

1500 x 800mm Maxxus structural wetroom floor former

1200 x 1200 x 22mm

ML936

1200 x 1200mm Maxxus structural wetroom floor former

1450 x 1150 x 22mm

ML1411

1450 x 1150mm Maxxus structural wetroom floor former

1650 x 900 x 22mm

ML942

1650 x 900mm Maxxus structural wetroom floor former

1800 x 800 x 22mm

ML1808

1800 x 800mm Maxxus structural wetroom floor former

Why Choose a Maxxus Wetroom Former?

Maxxus is a structural wetroom floor former designed to replace the section of flooring within the shower area while creating the correct falls towards the drain.

Its self-supporting construction allows it to span timber joists at up to 400mm centres without requiring additional support beneath the former.

Suitable for Timber & Solid Floors

Maxxus can be installed in both timber and solid floor constructions. In timber floors, the structural former can be installed over suitable joists, while solid-floor installations can be recessed to create a level-access tiled shower area.

Purus Minimax 2-Part Wetroom Drain

This kit includes a Purus Minimax 2-part drain, providing high-capacity drainage while maintaining a shallow installation depth beneath the former.

Flow Rate: 47 Litres/minute

Connection: 40mm solvent weld

Depth below former: 80mm

Trap: Spring-loaded NOOD no-odour trap

purus minimax drain insttaltion depth in maxxus wetroom former

Wetroom Drain Grid Options

Choose from two standard grid options or upgrade to a decorative finish to coordinate the drain with other bathroom fittings.

Standard Grid Options

Stainless Steel Chess Grid

Tile Insert 130

Supplied as Standard

Purus chess design pk155 stainless steel wetroom grid

purus tile insert 130 wetroom drain grid for maxxus

Coated Stainless Steel Grids

Brushed Brass

Code - GU845

Copper

Code - GU842

Bronze

Code - GU844

Black

Code - GU843

Glass Grids

White

Code - GU130WH

Silver Grey

Code - GU130LG

Slate Grey

Code - GU130DG

Black

Code - GU130BL

Complete Wetroom Tanking System Included

Every Maxxus tiled-floor kit includes our Innovations paint-on tanking system, providing a continuous waterproof membrane across the wetroom floor and surrounding wet area before tiling.

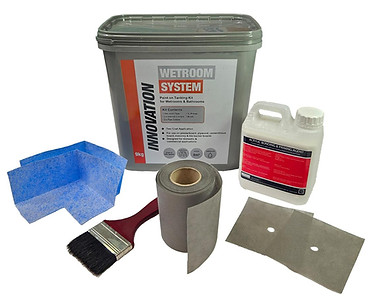

innovations 9kg paint-on wetroom tanking system

Included:

9kg tanking liquid
10m joint tape
2 internal corners
2 pipe collars
1 litre primer
Application brush

Up to 10m² Coverage | No Mixing Required | Flexible Membrane | Suitable with Underfloor Heating

Maxxus Installation Instructions

Always read the installation instructions before beginning work and check that the former, drain and floor construction are suitable for the intended installation.

View Maxxus Installation Instructions

Need Help? Contact Technical Support

Maxxus Wetroom Kit FAQs

Can Maxxus be installed on timber floors?

Yes. The Maxxus former is self-supporting and suitable for timber floor installations, accepting loads up to 470kg over joists at 400mm centres.

Can Maxxus be installed on concrete floors?

Yes. Maxxus is suitable for both timber and solid floor installations and can be recessed into a concrete or screeded floor to create the required wetroom level.

Can the Maxxus former be cut to size?

Yes. Maxxus formers can be cut where required to suit the available space. Care should be taken to maintain sufficient falls towards the drain.

Do I need to waterproof the Maxxus former before tiling?

Yes. The wetroom must be correctly waterproofed before tiling. The Maxxus tiled-floor kit includes our paint-on tanking system for waterproofing the former and surrounding wet area.

Can I use underfloor heating with Maxxus?

Yes. Maxxus wetroom systems can be used with suitable electric underfloor heating. Refer to our underfloor heating guide for installation options and requirements.

What drain comes with the Maxxus kit?

The kit includes a Purus Minimax 2-part drain with a 47 litre-per-minute flow rate, 40mm solvent-weld connection and spring-loaded NOOD no-odour trap.
